NewScope-0Jr is a color LCD retrofit kit designed to replace the small-screen monochrome raster CRT or EL display used in the following HP® instrument:

• 3561A Dynamic Signal Analyzer
• 8920A/B, 8921A RF Communications Test Set
• 8590A/B/C/E/L series Spectrum Analyzer
• 8935 (E6380A and E6381A) Base Station Test Set
• E8285A CDMA Mobile Station Test Set

• CRT display intensities are mapped to colors. EL display replacement is yellow-only.
• LCD panel size and mounting hardware are optimized for the original test equipment
• On-board analog VGA output signals are available for driving an external VGA monitor. Cabling and output connector are to be supplied by the customer.
• The LCD kit is powered from the regulated +12V used for the original CRT/EL display
• The LCD display is pre-assembled and tested for easy installation

For more information, click to open the Operating Manual with installation instructions:

NewScope-0Jr Operating Manual

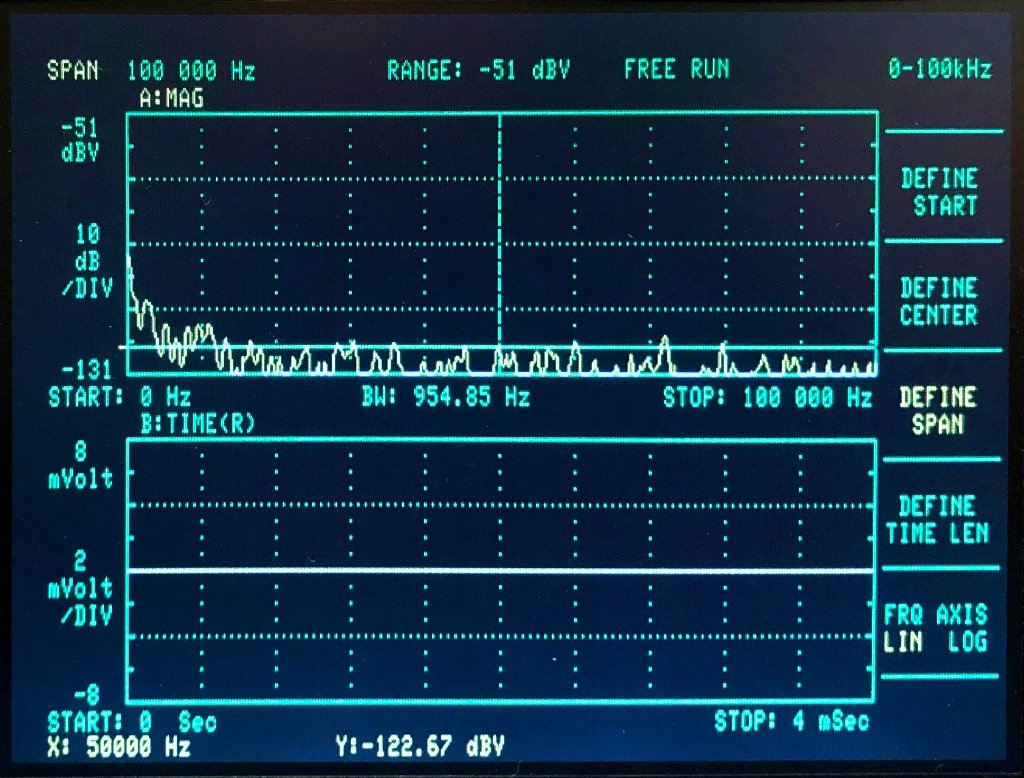

NewScope-0Jr LCD Display on the 3561A Dynamic Signal Analyzer (click to zoom in)

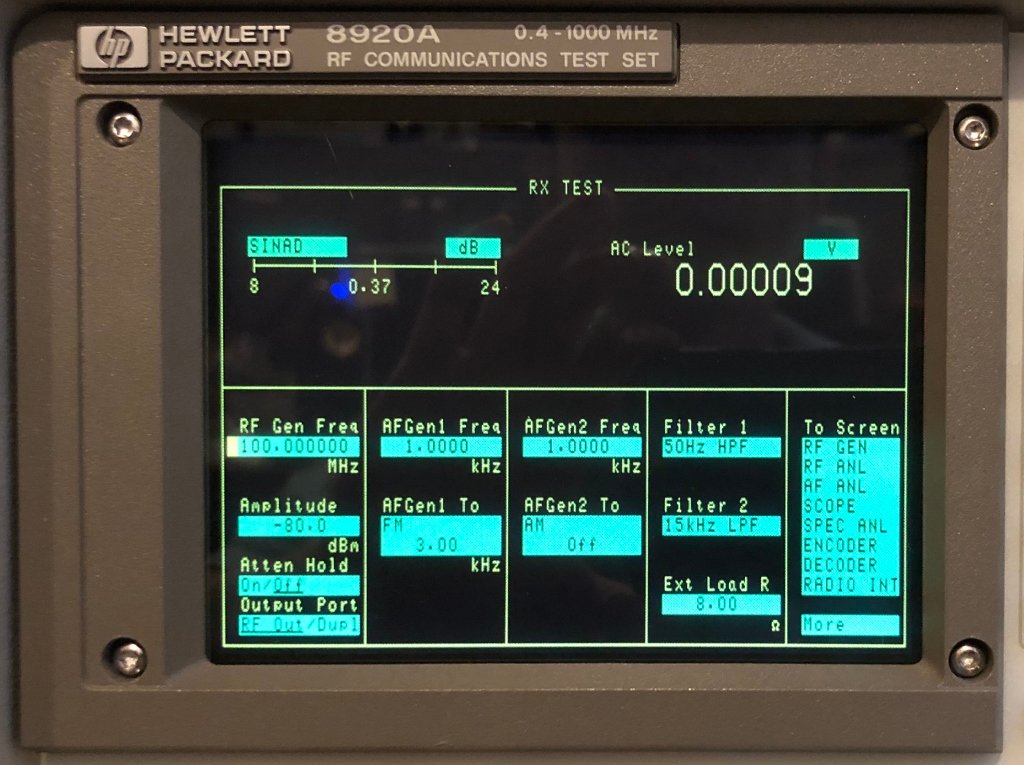

NewScope-0Jr LCD Display on the 8920A RF Communication Test Set (click to zoom in)

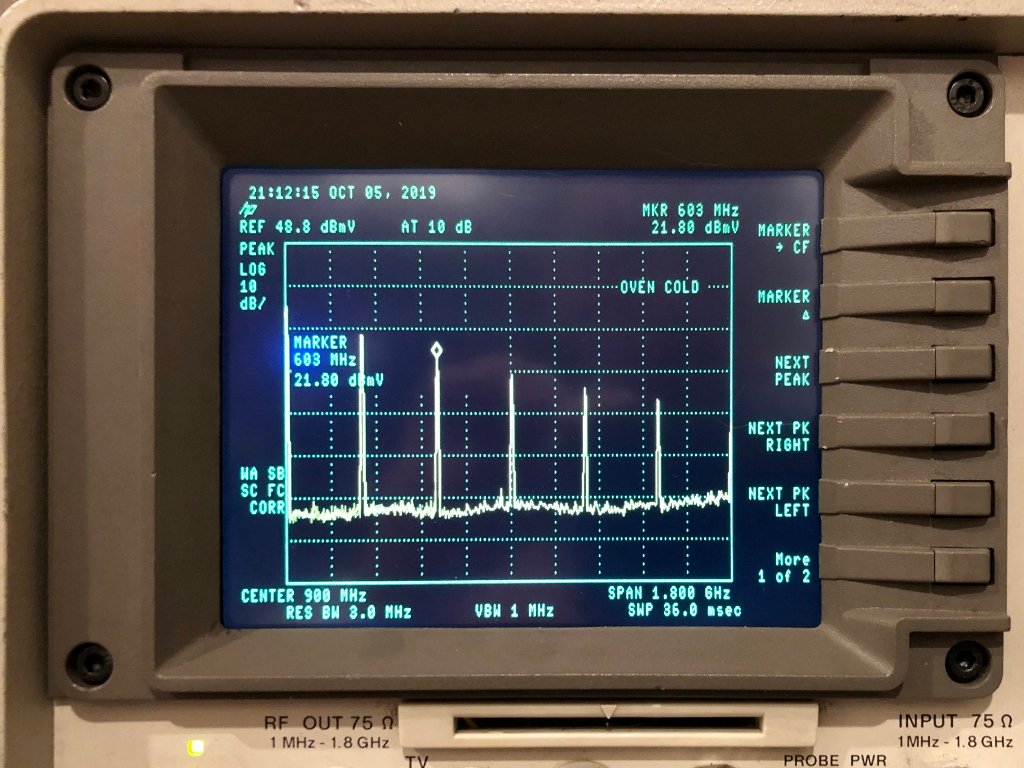

NewScope-0Jr LCD Display on the 8591C Cable TV Analyzer (click to zoom in)

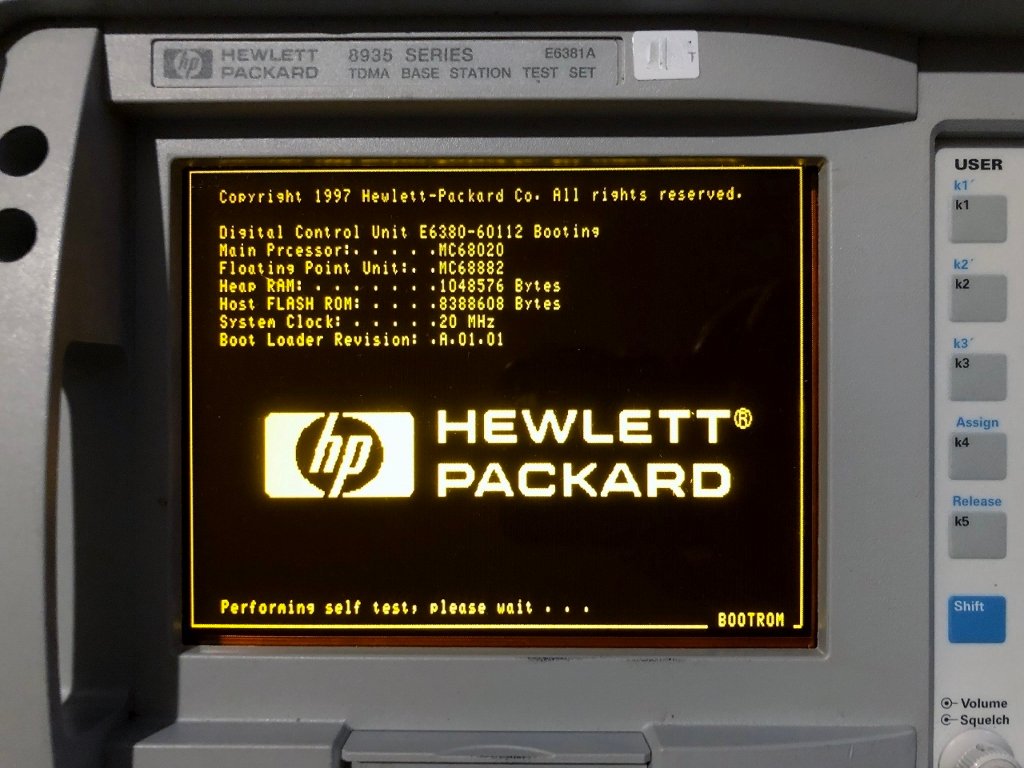

NewScope-0Jr LCD Display on the E6381A TDMA Base Station Test Set (click to zoom in)

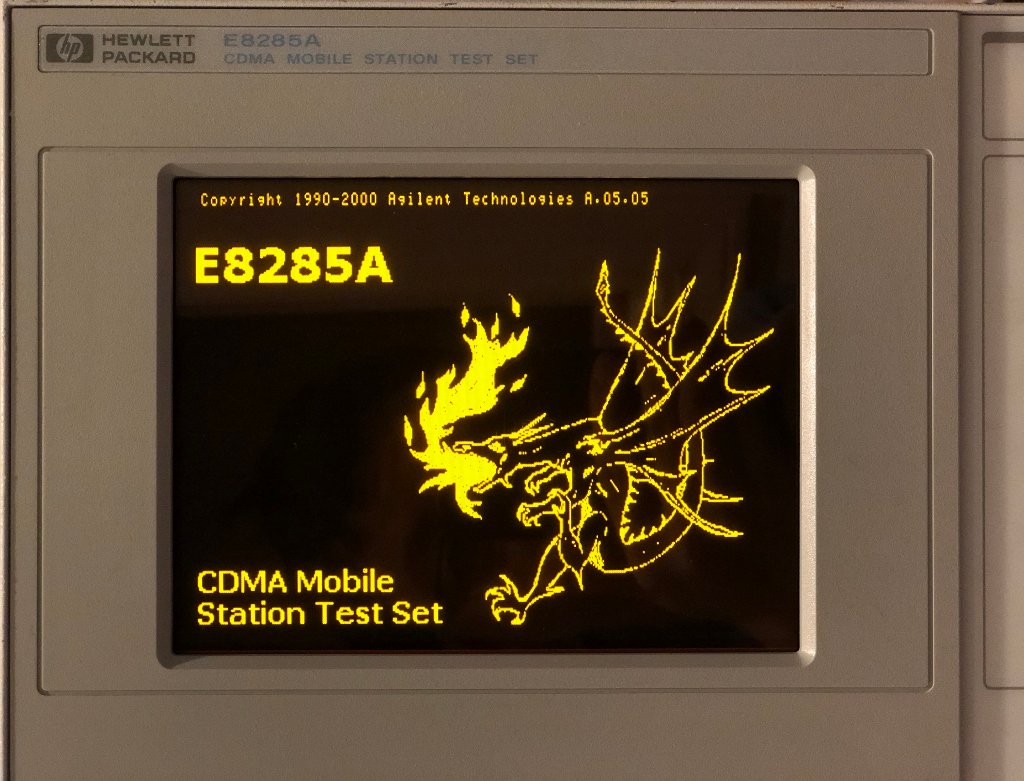

NewScope-0Jr LCD Display on the E8285A CDMA Mobile Station Test Set (click to zoom in)

Buy from our Web Store
